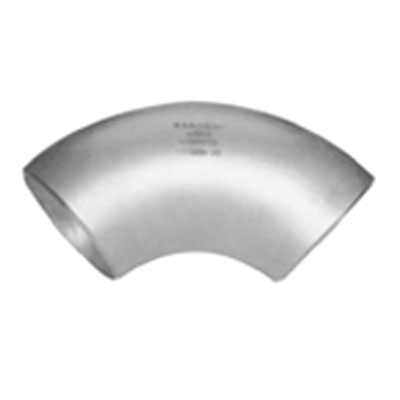

Stainless steel Elbow
Product Description:
STAINLESS STEEL ELBOW
304、304L、316、316L 321 2520
15-900mm
5s-120s
|
公稱 |
通徑 |
外徑mm |
中心距至 |
理論重量kg/pcs | |||||
|
端面的距離 | |||||||||
|
Nomimal |
diameter |
outside diameter |
center |
to end |
approx weight | ||||
|
DN |
INCH |
OD |
F |
P |
5S |
10S |
20S |
40S |
80S |
|
20 |
3/4 |
25 - 26.7 |
|||||||
|
25 |
1 |
32 - 33.4 |
25 |
50 |
0.055 |
0.096 |
0.11 |
0.13 |
0.15 |
|
32 |
1.1/4 |
38 - 42.2 |
32 |
64 |
0.069-0.075 |
0.102-0.132 |
0.14-0.15 |
0.158-0.17 |
0.20-0.236 |
|
40 |
1.1/2 |
45 - 48.3 |
38 |
76 |
0.12-0.13 |
0.18-0.186 |
0.2-0.21 |
0.22-0.24 |
0.3-0.33 |
|
50 |
2 |
57 - 60.3 |
51 |
102 |
0.17-0.176 |
0.297-0.308 |
0.287-0.396 |
0.42-0.44 |
0.6-0.616 |
|
65 |
2.1/2 |
73 - 76.1 |
64 |
128 |
0.35-0.364 |
0.53-0.546 |
0.64-0.655 |
0.89-0.91 |
1.0-1.29 |
|
80 |
3 |
89 |
76 |
152 |
0.486 |
0.729 |
0.972 |
1.36 |
1.94 |
|
90 |
3.1/2 |
101.6 |
89 |
178 |
0.7 |
1.05 |
1.4 |
1.96 |
2.8 |
|
100 |
4 |
108 - 114.3 |
102 |
204 |
0.90-0.94 |
1.2-1.4 |
1.7-1.876 |
2.56-2.77 |
4.0-4.13 |
|
125 |
5 |
133 - 141.3 - 139.7 |
127 |
254 |
1.8-2.02 |
2.1-2.37 |
3.2-3.49 |
4.0-4.4 |
6.5-6.98 |
|
150 |
6 |
159 - 168.3 - 165.2 |
152 |
304 |
2.6-2.9 |
3.1-3.4 |
4.8-5.0 |
6.8-7.1 |
10.3-11.0 |
|
200 |
8 |
219 - 216.3 |
203 |
406 |
6.25-5.0 |
7.0-6.8 |
11.08-10.7 |
14.1-13.5 |
22-21 |
|
250 |
10 |
273 - 267.4 |
254 |
508 |
10.08-9.7 |
11.2-10.0 |
17.6-16.0 |
24.6-23.0 |
44.8-40.0 |
|
300 |
12 |
325 - 323.9 - 318.5 |
305 |
610 |
14.8 |
16.7 |
23.3 |
37 |
64.5 |
|
350 |
14 |
377 - 355.6 |
356 |
711 |
19.1-15.6 |
22-19.5 |
38-34 |
48.6-42.6 |
80.0-74.0 |
|
400 |
16 |
426 - 406.4 |
406 |
812 |
29.0-26.5 |
35-30 |
57.0-49.9 |
67-62 |
149.0-135.0 |
|
500 |
20 |
529 - 508 |
508 |
1016 |
|
|
|
|
|
|
550 |
22 |
559 | 559 | 1118 | |||||
